ResQguard™- RG1000
SKU: N/A

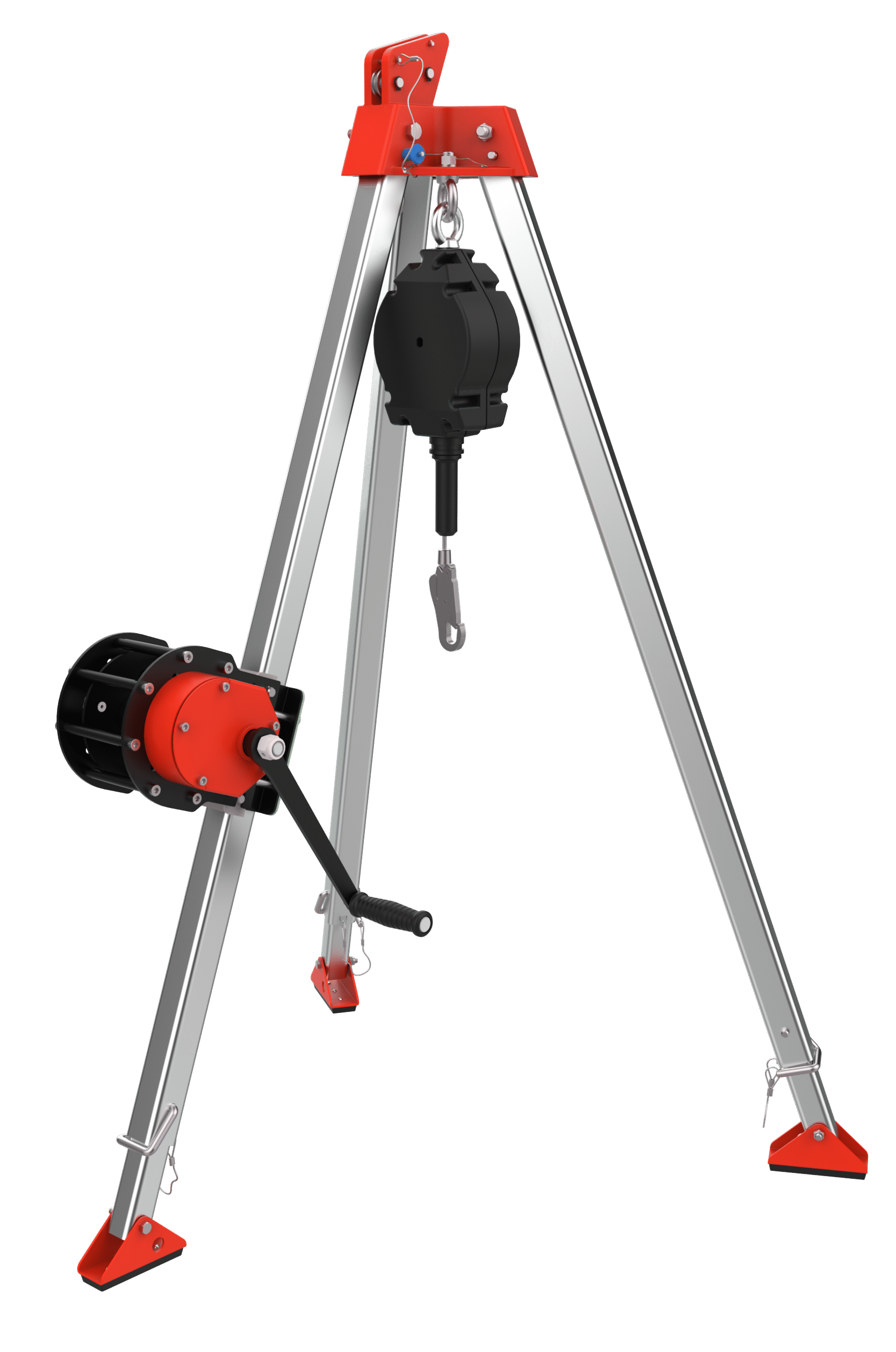

ResQguard™- RG1000
Specially designed tripod for confined space entry/retrieval applications. Its simplified design allows easy setup providing the user a means of controlled ascent and descent in the shortest possible time.
- Description
- Product Specification
- Downloads
- Applications
- Industries
Description
Confined Space Rescue – Tripod
Product Specification
| General Construction | Tripod Legs : Aluminum Sq. Hollow Section I Tripod Head : Aluminum Casted Anchorage Eye : Forged SS316 |
| Material of Construction | Aluminum 6063 – T6 (sections) & Zinc Plated MS (studs & Pins) |
| Telescopic Reach | 128 cm to 230 cm (50.4 inch to 90.5 inch) |
| Vertical Height Range | 123 cm to 219 cm (48.4 inch to 86.2 inch) |
| Base Width Range | 106 cm to 176 cm (42 inch to 69.5 inch) |
| Product Color | Tripod Head : Powder coated Yellow I Tripod Legs : Silver Anodized |
| Anchorage Capacity | 22 KN |
| Load Capacity | 200 Kg |
| Min. Breaking Strength | 14 KN |
| Install type | Portable |
| Weight (approx) | 16 Kg |
| Operating Temperature | -400 C to +600 C |
| For Storage | Comes with Carry Bag |
| Recommended Industry | Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities |
Applications
Tanks
Vessels
Drainage system
Sewerage system
Pharma industry
Chemical plants
Industries
Construction
Mining
Oil & Gas
General Industrial
Transportation
