MobiSafeā„¢- MS201

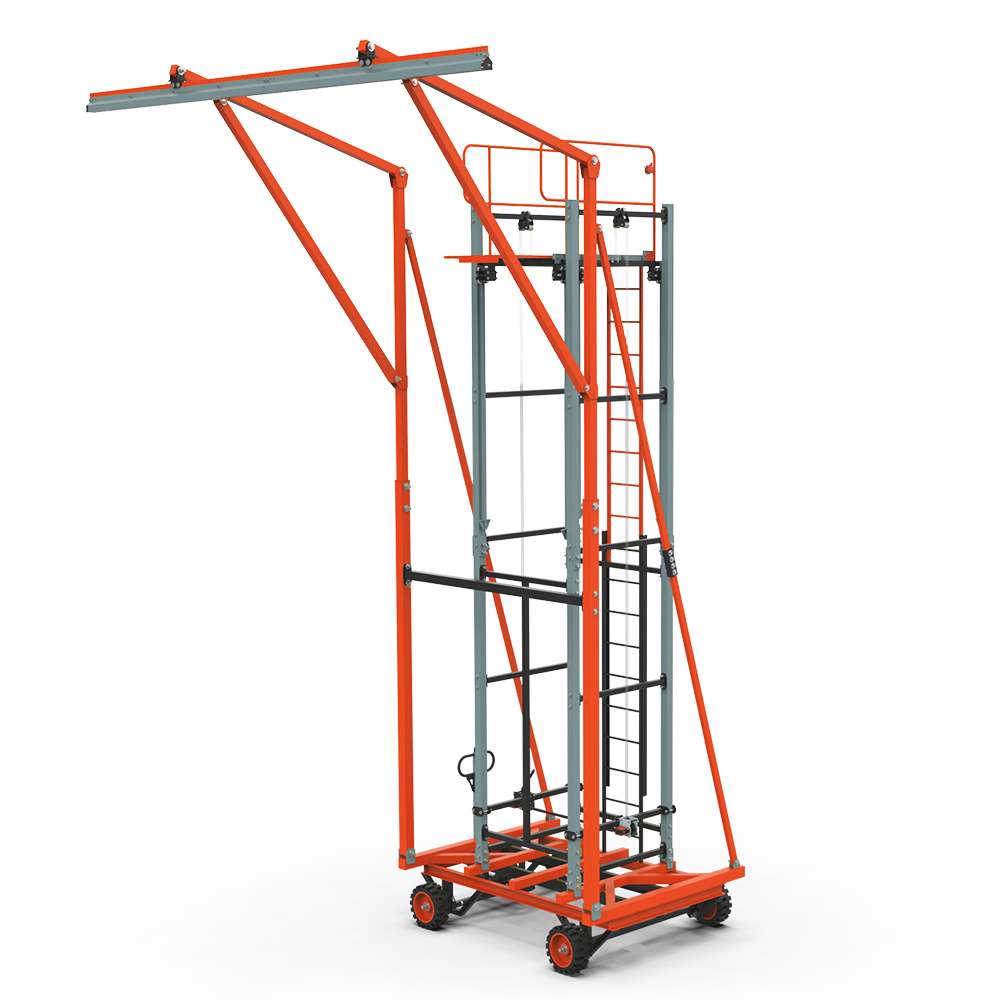

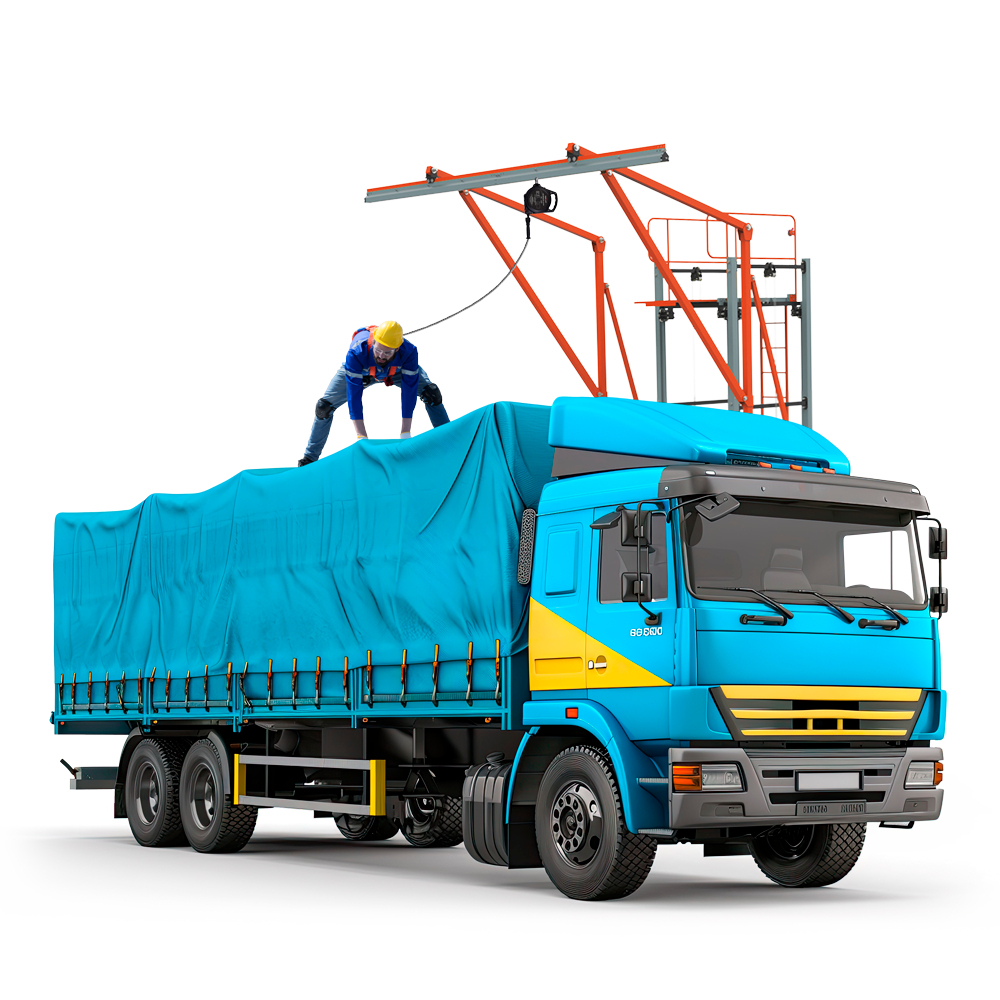

Mobile Platform Systems is perfectly designed for areas where there are insufficient overhead anchoring structures. MobiSafeTM Mobile Platform Systems was designed to be versatile, lightweight, and exceptionally mobile to ensure worker safety in various challenging situations. Our pre-engineered systems provide secure anchor points and spacious safe working areas to help the worker to focus on the work while working at heights.

This system is capable of supporting the weight of two workers in a fall arrest situation. This system is available with single rail and double trolley for optimal horizontal mobility and Reliable fall protection for two users while working. We offer a height-adjustable and extendable type access platform with a telescopic ladder to suit site conditions so that you can easily access the work area.

This mobile system is classified for two users and can be installed for permanent or temporary use. A specially designed automobile- type steering mechanism and durable wheels allow workers to easily relocate the mobile structure as needed. The wheel has a fabricated steel rim and Solid rubber moulded outer that makes it easy to use on uneven surfaces.

  • Description
  • Product Specification
  • Industries
  • Downloads

Description

Mobile Platform Systems

Product Specification

Anchor Height 7.5 meter
Size of Base Trolley 2.5 x 2 meter
Size of Platform 1.2 x 1 meter
Height Adjustment Range of Platform 4 meter to 6 meters
Max. Extension length of Platform 1 meters
Rail Length 5 meter (single rail with two trolleys)
Wheel 16″ (Fabricated steel rim with Molded solid rubber)
Max. Number of Users 2 Person
Max. Weight Capacity 190 kg
Power Required for movement 2 Person
Material of Construction High strength steel sections
Compatible Devices Retractable Fall arrest block with Full body safety harness

Industries

Mining Industries
General Industrial
Transportation Industries
Construction Industries

Downloads


Declaration Of Conformity
