MobiSafeā„¢- MS101

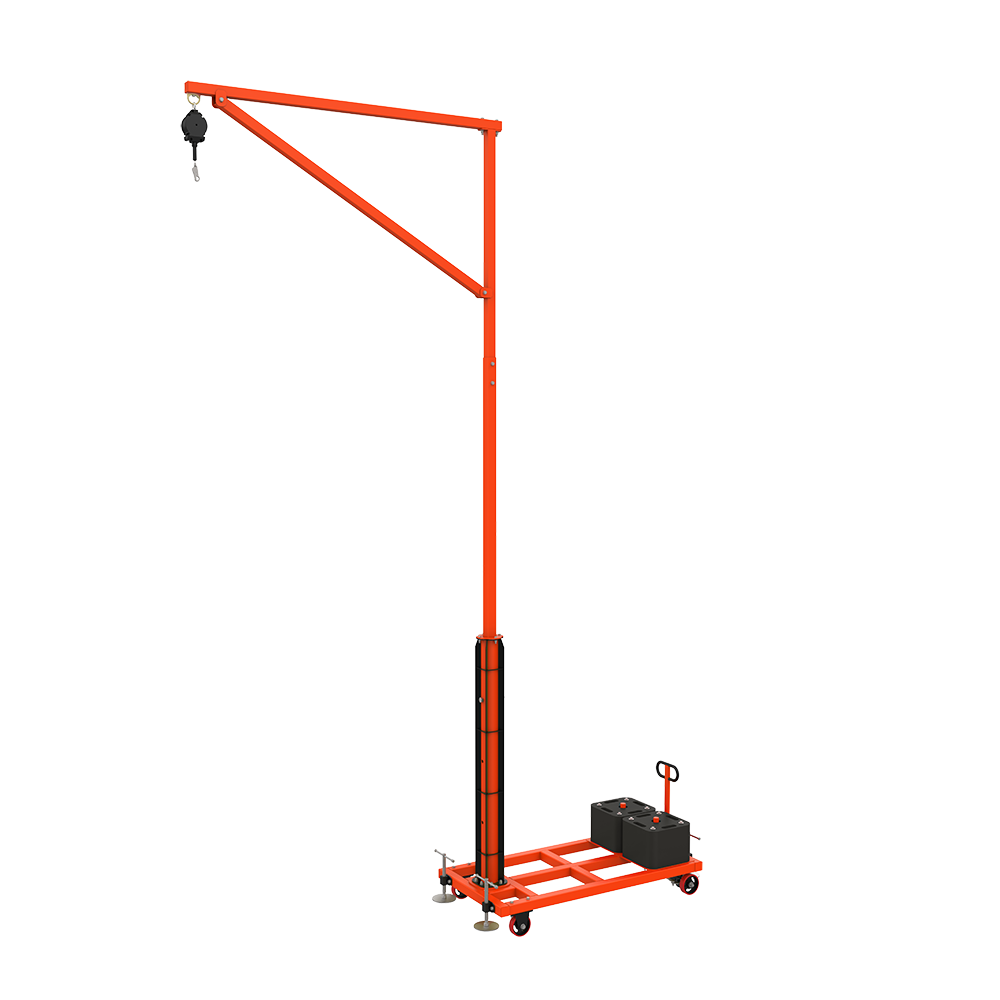

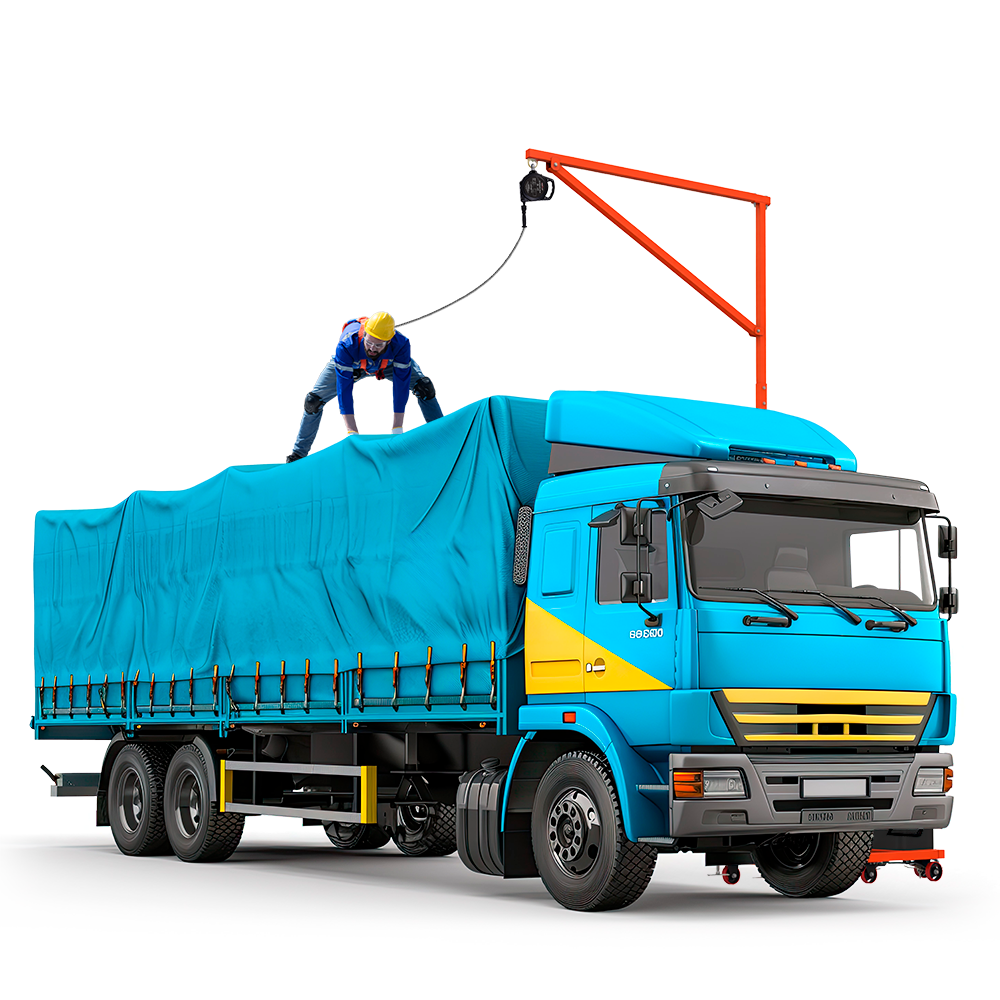

Mobile Counter Weighted Pod System is perfectly designed for areas where there is limited space or insufficient overhead anchoring structures. The MobiSafeTM Mobile Counter Weighted Pod System was designed to be versatile, lightweight, and exceptionally mobile to ensure worker safety in various challenging situations. Our pre- engineered systems provide secure anchor points and spacious safe working areas to help the worker to focus on the work while working at heights.

This system is capable of supporting the weight of only one workers in a fall arrest situation. MobiSafeTM Mobile Counter Weighted Pod System is available with single point anchorage and 360 degree of rotatable mast and trolley Mounted System Providing optimal mobility and reliable fall protection for user while working. This portable system is classified for single users and can be installed for permanent or temporary use. Specially designed metal counterweight block with handle facilitates removal of the counterweight. The trolley mounted system allows for easy portability. Four heavy duty jacks are provided for extra stability.

  • Description
  • Product Specification
  • Industries
  • Downloads

Description

Mobile Counter weighted Pod system

Product Specification

Anchor Height 6 meter
Cantilever Length 2.5 meter
Size of Counterweight Trolley/ Carriage 2 x I Meter
Counterweight 40 nos of Metal Counterweight Blocks (20kgs Each)
Anchorage Single Point Anchor
Lifting Arrangement of Mast Overhead Crane or Forklift (One Time process)
Max. Number of Users I Person
Max. Weight Capacity 150 kg
Power Required for movement One Person
Material of Construction High strength steel sections
Compatible Devices Retractable Fall arrest block with Full body safety harness

Industries

Railway workshops
Mining Industries
General Industrial
Transportation Industries
Construction Industries

Downloads


Declaration Of Conformity
