MobiSafeā„¢- MS200

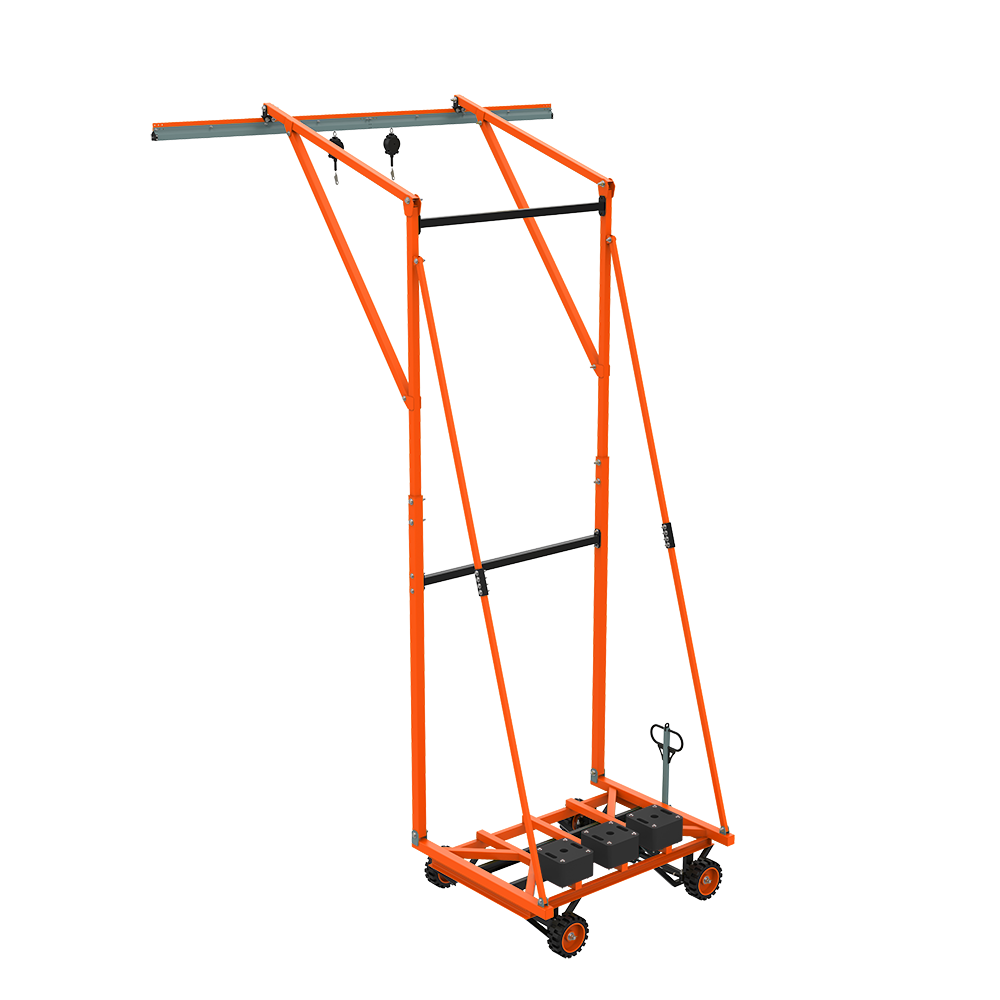

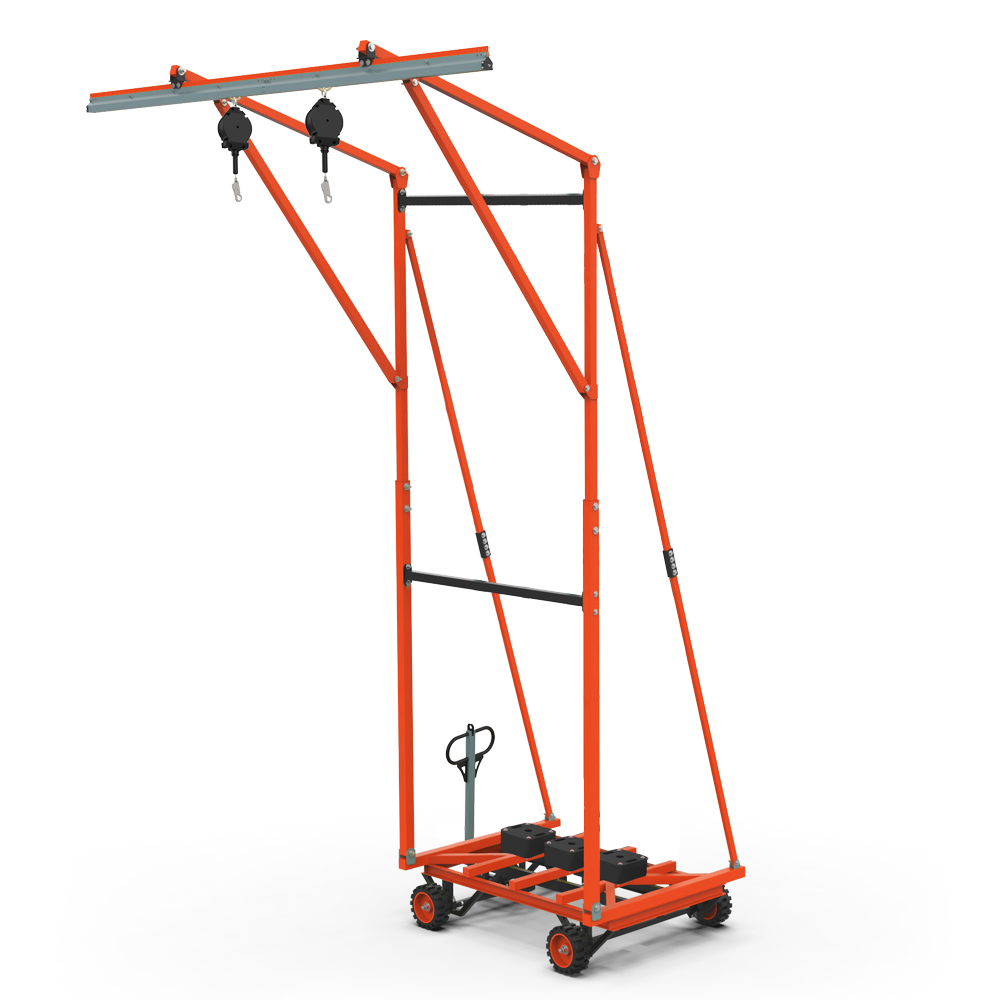

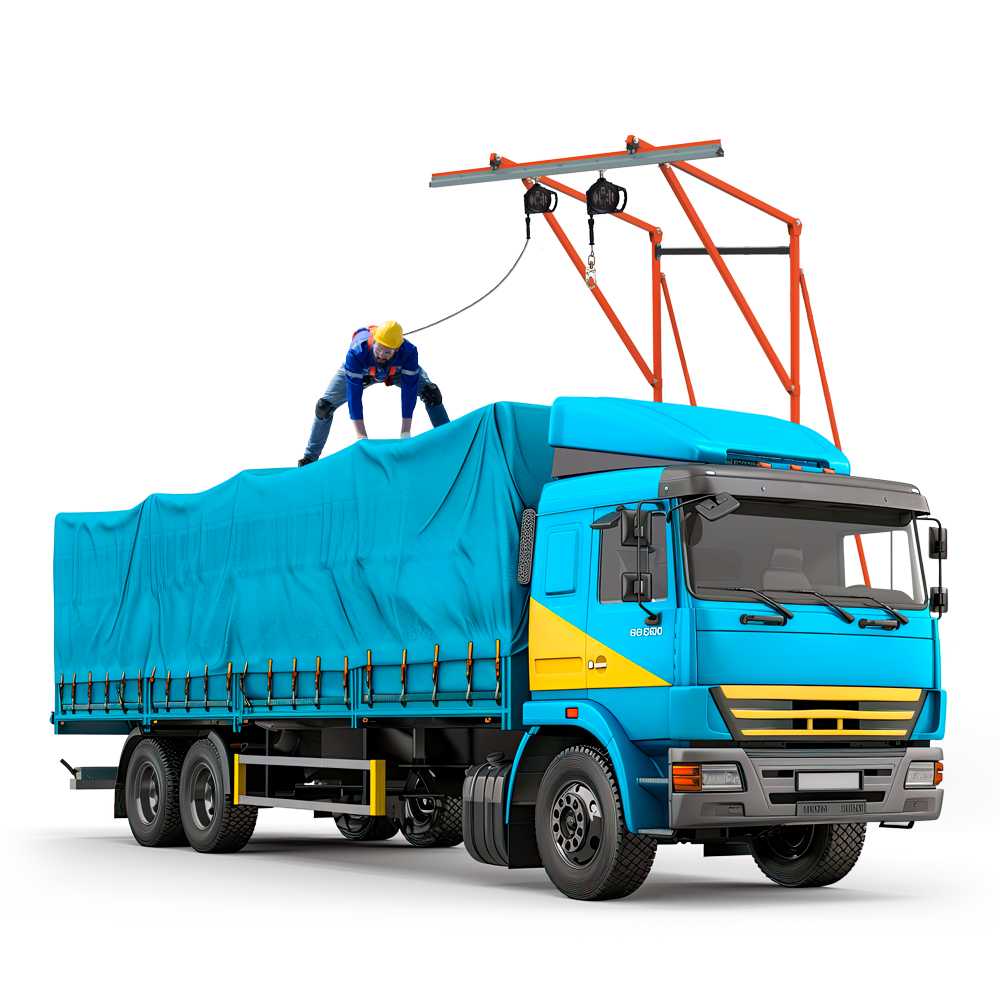

Mobile Counter Weighted System is perfectly designed to provide anchoring for those areas where overhead obstructions such as high-tension cables, EOT, etc. May prevent anchoring. MobiSafeTM Mobile Counter Weighted System was designed to be versatile, lightweight, and exceptionally mobile to ensure worker safety in various challenging situations. Our pre engineered systems provide secure anchor points and spacious safe working areas to help the worker to focus on the work while working at heights.

This mobile system is classified for two users and can be installed for permanent or temporary use. A specially designed steering mechanism with handle lock pin is fitted on the front side of the device. Metal block with handle for easy installation and removal of counterweight. Industrial grade durable wheels allow workers to easily relocate the portable structure as needed. The wheel has a cast iron core and PU molded outer that makes it easy to not damage floor and quite while moving.

  • Description
  • Product Specification
  • Industries
  • Downloads

Description

Mobile Counter Weighted system

Product Specification

Anchor Height 6 meter
Rail Length 5 meter (single rail with two trolleys)
Size of Base Trolley 2 x 1.2 meter
Counterweight 48 nos of 20 kg weight block to provide counterweight
Height Adjustment Foot Heavy duty levelling jacks
Wheel 7″ Diameter (Industrial Grade Metal core with Moulded PU)
Steering Type Specially designed steering with steer lock system
Trolley & Stopper Beam Channel Rail & Beam type trolley (MOC: Powder Coated MS)
Max. Number of Users 2 Person
Max. Weight Capacity 190 kg
Power Required for movement 2 Person
Material of Construction High strength steel sections
Compatible Devices Retractable Fall arrest block with Full body safety harness

Industries

Railway workshops
General Industrial
Transportation Industries
Construction Industries

Downloads


Declaration Of Conformity
