WeldVison™- W500 Air
SKU: N/A
WeldVison™- W500 Air

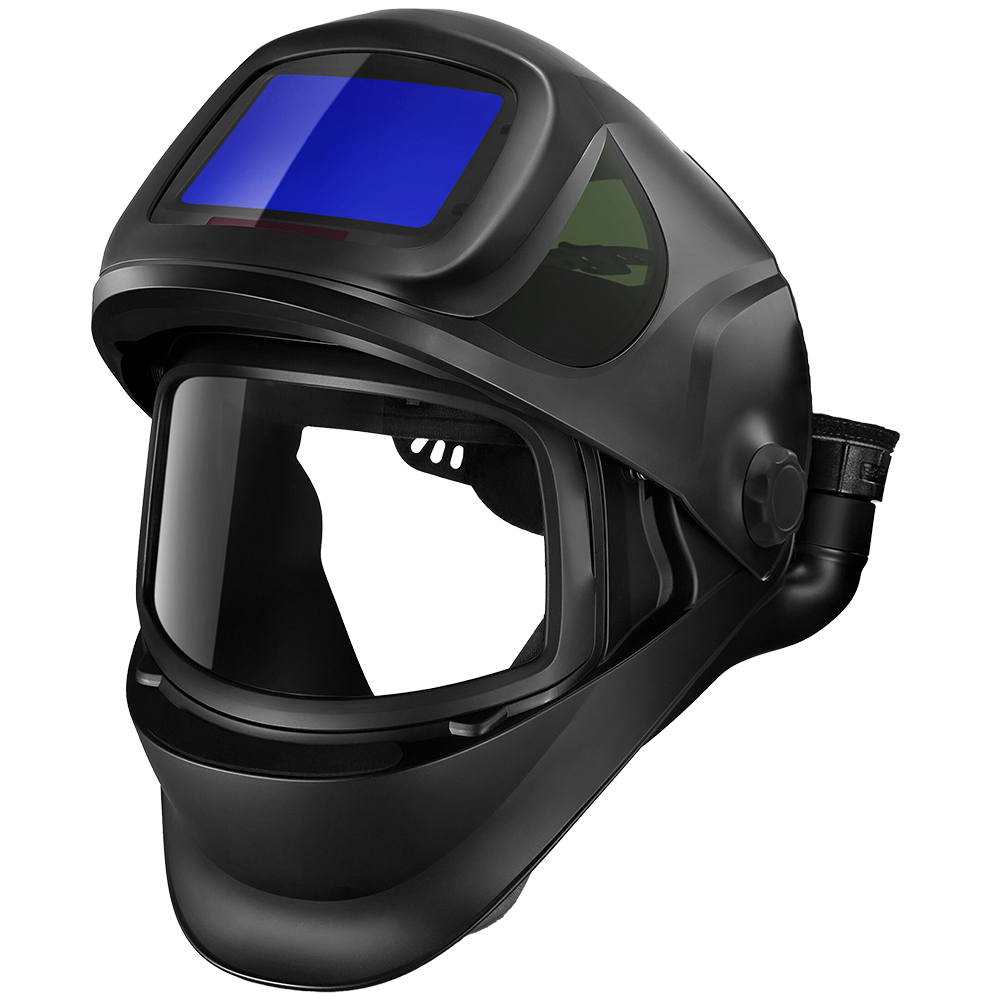

WeldVison Flip-up Auto Darkening Welding Helmet with side lens with ADF900S – Air Version
- Description
- Applications
- Industries
- Product Specification
- Downloads
Description
WeldVison Flip-up Auto Darkening Welding Helmet with side lens with ADF900S – Air Version
Applications
MMA
MIG/MAG
TIG
Flux-Cored
Plasma
Grind
Industries
Automotive
Construction
Heavy Engineering
Oil & Gas
Product Specification
| Optical Class | 1 /1/1/1 |
| Viewing Area | 107 x 75 mm (4.21″ x 2.95″) |
| Cartridge Size | 156 x 123 x 33 mm (6.14″ x 4.84″ x 1.30″) |
| Arc Sensor | 4 |
| Light State | DIN 4 |
| Grind State | DIN 4 |
| Cutting Shade | Shade No. from 5 to 8 |
| Welding Shade | Shade No. from 9 to 15 |
| Shade Control | Internal, Digital Display Control |
| Power On / Off | Automatic On / Off |
| Sensitivity Control | Low ~ High, Digital Display Control |
| UV / IR Protection | Up to Shade DIN 13 at all times |
| Power Supply | Solar cell. Battery replaceable, 2 x CR2450 lithium battery |
| Switching Time | 1 /25,000 s. from Light to Dark |
| Grinding | Yes |
| Delay (Dark to Light) | 0.1 ~ 1.0 s, Digital Display Control |
| Low Amperage TIG Rated | ≥ 2 amps (DC); ≥ 2 amps ( AC) |
| Operating Temp. | -10 °C ~ +55 °C (23 °F ~ 131 °F) |
| Storing Temp. | -20 °C ~ +7o °C (- 4 °F ~ 158 °F) |
| Helmet Material | High Impact Resistance Nylon |
| Approved | CE, UKCA, UKNI, ANSI Z87.1, Z94.3, AS/NZS 1338.1, EAC |
